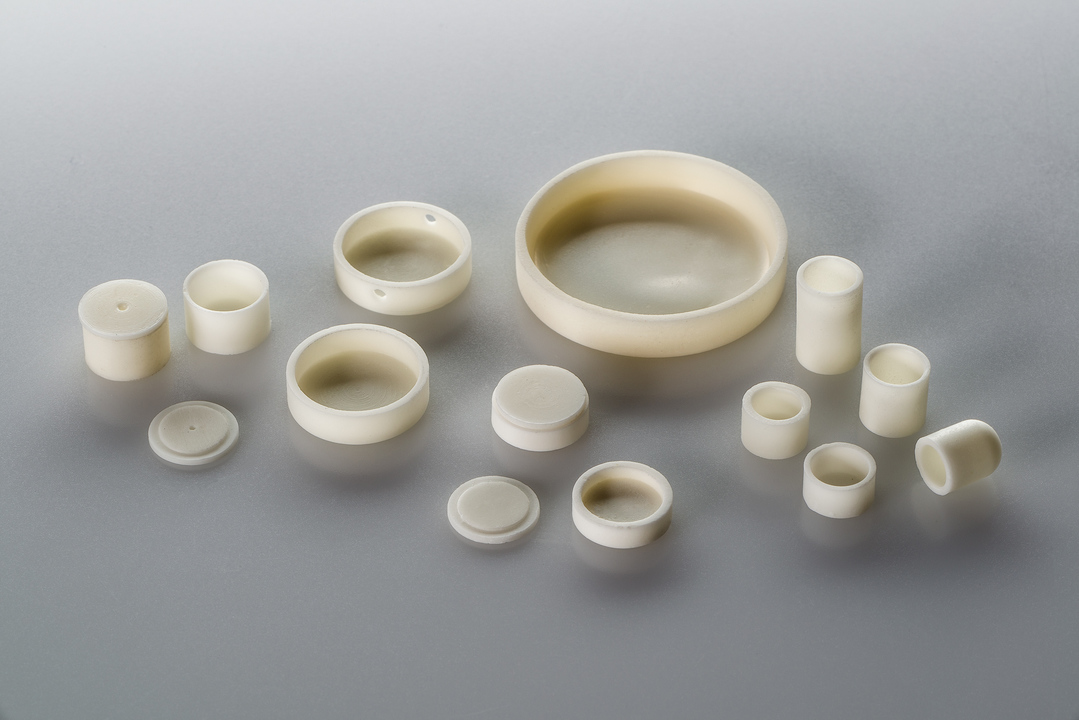

Microcrucibles
We offer a range of microcrucibles suitable for thermo-gravimetric analysis (TGA), differential thermal analysis (DTA) and other applications.
| Product number | Top ⊘ † | Bottom ⊘ † | Wall width | Height | Capacity (ml) †† |
| TGA-002-W | 6 | 6 | 0.65 | 2 | 0.02 |
| DTA-A03 | 5 | 5 | 0.7 | 3.5 | 0.03 |
| WD-066-A | 5 | 5 | 0.6 | 3.9 | 0.04 |
| DTA-B04 | 4.5 | 4.5 | 0.6 | 5.5 | 0.04 |
| D77-W | 5 | 5 | 0.5 | 5 | 0.06 |
| WD-066-B | 5 | 5 | 0.65 | 9.9 | 0.10 |
| D86-W | 10.6 | 10.6 | 0.7 | 3 | 0.15 |
| D85-W | 5.5 | 5.5 | 0.55 | 3 | 0.04 |
| D84-W | 6.6 | 6.6 | 0.5 | 4.1 | 0.09 |
| TGA-01-W | 5 | 5 | 0.55 | 8 | 0.09 |
| WD-100 | 20 | 20 | 1 | 11 | 2.55 |
† All measurements are outer dimensions. Individual pieces will vary due to the nature of ceramics.
†† Note: capacities are a guide only. These crucibles should not be used for volumetric measuring.
Sample Application
Controlled Bluntness
The tips of the multiple blades of a highly specialised cutting shear had to be just fine enough to follow a soft, irregular surface, but blunt enough to be sure that they would not cut or puncture it. We came up with a precision extruded section having two concave grooves along it with controlled root radii of 0.18 and 0.16 mm.
